What Are Performance Levels and Why Do They Matter in Machine Safety Systems

Performance Levels (PL), defined in ISO 13849-1, are fundamental for designing safe and compliant machinery. Whether you are a machine builder or an equipment end-user, understanding PL helps ensure your safety functions work reliably—even under fault conditions.

To explore typical safety components used in PL-compliant systems, you may visit the Dadisick product overview page:

👉https://www.dadisick.com/products2127633/Sensor-Products.htm

What Is a Performance Level (PL)?

Performance levels are used to specify the ability of safety-related parts of a control system to perform safety functions under foreseeable conditions.

Performance Level (PL) is a measure defined in the ISO 13849-1 standard. It indicates the ability of a machine's safety control system to perform its safety functions under foreseeable conditions.

In simple terms, PL quantifies how well a safety system can reduce risk — the higher the PL, the lower the probability that a dangerous failure will occur.

PL is categorised into five levels: PLa, PLb, PLc, PLd, and PLe.

· PLa–b: Basic Risk (Small automated equipment, simple switches)

· PLc: Medium Risk (Assembly equipment, packaging machines)

· PLd: High Risk (Robot units, punch presses)

· PLe: Extremely High Risk (Die-casting machines, shearing equipment, dangerous moving parts)

How to Determine the Required Performance Level (PLr)

Determining the Required Performance Level (PLr) is a fundamental step in ensuring functional safety and reducing machine-related risks to an acceptable level. The process, as defined by ISO 13849-1, should be conducted early in the machine design phase, when safety functions are being specified, and risk mitigation strategies are developed.

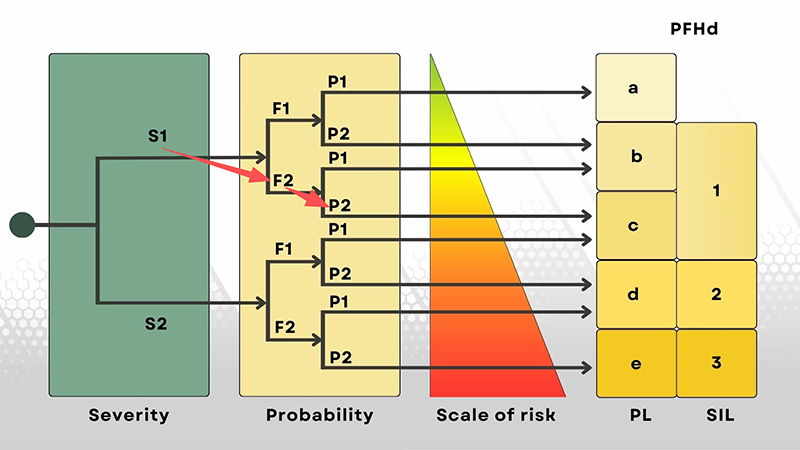

To identify the required PLr, engineers evaluate three key parameters using the standard risk graph:

Severity of Injury (S): Determines how serious the potential harm could be. Minor or reversible injuries correspond to S1, while severe or irreversible injuries (including fatal accidents) correspond to S2.

Frequency and Duration of Exposure (F): Refers to how often and how long an operator is exposed to a hazard. Occasional access is classified as F1, whereas frequent or constant exposure is F2.

Possibility of Avoiding the Hazard (P): Evaluates whether the operator can reasonably avoid or limit harm once the hazard occurs. If avoidance is feasible, it is rated P1; if avoidance is nearly impossible, it is P2.

By combining these three parameters, the required Performance Level can be determined. For instance, a scenario involving minor injury potential (S1), frequent exposure (F2), and low avoidance possibility (P2) would lead to a Required Performance Level of PLr = C. In this case, the safety-related control system must meet PL C or higher (PL C–PL E) to ensure adequate protection. This systematic approach ensures that each safety function is designed with the appropriate reliability, aligning both with regulatory compliance and the operational safety goals of the machine.

After establishing PLr, the next step is evaluating whether your safety system can actually achieve that required level.

ISO 13849-1 defines four technical indicators:

· Category (System Architecture)

Describes redundancy, fault tolerance, and behaviour during failure.

Higher categories (2, 3, 4) provide more robust protection.

· MTTF<sub>d</sub> — Mean Time to Dangerous Failure

Indicates how reliable the internal components are over time.

Longer MTTFd = more stable and dependable safety system.

· DC — Diagnostic Coverage

Measures how effectively the system detects internal faults.

Higher DC = higher achievable PL.

· CCF — Common Cause Failure Resistance

Ensures redundant channels won't fail simultaneously due to the same external influence (vibration, wiring, EMC interference, etc.).

PLr tells you what level of safety is required. These four indicators determine whether your design can reach that level. A machine is compliant only when PL ≥ PLr.

Why Performance Levels Matter

Performance Levels are not just technical classifications — they represent the measurable reliability of a machine’s safety system. Establishing the correct PL ensures that safety-related components consistently perform their intended protective functions, even in the event of a fault or system stress.

A properly defined and validated PL brings several key advantages:

· Enhanced Safety Assurance: The system maintains a predictable and dependable safety response, minimizing the risk of injury or equipment damage.

· Regulatory Compliance: Meeting the appropriate PL fulfills international safety requirements, supporting conformity with ISO 13849-1 and global market standards.

· Operational Efficiency: Well-designed safety architectures reduce unnecessary interruptions, enabling continuous, safe, and efficient production.

· Long-Term Reliability: Verified PL levels help ensure the system’s safety performance remains stable over its entire lifecycle.

In essence, Performance Levels bridge the gap between functional safety and industrial productivity. They provide engineers with a quantifiable benchmark for system integrity and give organizations the confidence that their automation processes meet the highest safety expectations.

Our Perspective: Building Safer and Smarter Systems with High-Performance Safety Sensors

At DADISICK, we are committed to developing advanced safety sensing solutions that meet international safety standards and support high-performance Level (PL) requirements. Our technologies empower engineers and system integrators to design machine safety systems that safeguard personnel while maintaining optimal production efficiency. By combining precision detection, fast response times, and proven reliability, DADISICK safety sensors help manufacturers achieve the required Performance Level (PLr) with confidence — ensuring every system operates safely, intelligently, and efficiently in demanding industrial environments.

Conclusion: Performance Levels — The Core of Safe and Reliable Automation

Understanding and applying Performance Levels (PL) is the foundation of every safe and compliant automation system.

By aligning machine design practices with ISO 13849-1 and integrating reliable safety components, companies can ensure not only regulatory compliance but also long-term operational excellence.

A clearly defined Performance Level represents more than just a safety metric — it reflects a company’s commitment to protection, reliability, and trust across every stage of the production process.
