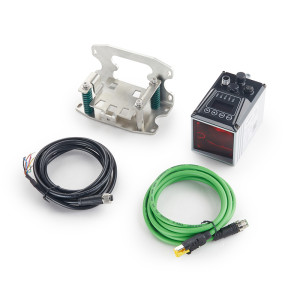

DS-80 | Distance Sensor High Precision Sensor | DADISICK
- Model
- DS Series | DS-80
Item specifics
- Measuring frequency:
- 1000Hz
- Data transmission interface:
- SSl, Ethernet 100 BASE-TX
- Laser source:
- Red laser (visible light)
- Measuring distance
- 80m
- Measurement resolution:
- 0.1 mm
- Power supply:
- DC 9V...30V
- Power consumption:
- 2.4W(MAX)
- Protection grade:
- IP65
Review
Description
DADISICK's new long-distance laser rangefinder DS-200 can achieve high-precision fixed-point measurement within 200 meters, with a ranging accuracy of +/-2mm; DS-200 is equipped with an intuitive operation panel and status prompts, which can be easily and quickly installed; unlike conventional phase rangefinders, this product can support a measurement frequency of up to 1000Hz, so it is particularly suitable for precise positioning and measurement of high-speed moving objects, and is an essential sensor for automated warehousing, logistics or driving systems.
High-precision rangefinder DS-200 is mainly used in the following scenarios:
• Logistics and warehousing industry: used for horizontal and vertical positioning of stackers, and positioning of linear conveyor trolleys.
• Steel industry: used for positioning of the X, Y and Z axes of the crane, and positioning of the conveyor trolley.
These scenarios require high-precision, long-distance rangefinders to achieve precise position control.
Smart warehousing
Port automated lifting equipment
Reciprocating transport system
|
Distance Sensor Basic information
|
|||
Models | DS-80 | DS-120 | DS-200 |
Measuring range | 80m | 120m | 200m |
Typical value of spot size | 100mm(@80m) | 150mm(@120m) | 245mm(@200m) |
Measurement accuracy | ±2 mm | ||
Repeat accuracy | 1mm | ||
Measurement frequency | 1000Hz | ||
Measurement resolution | 0.1mm | ||
Maximum movement rate | 15m/s | ||
|
Optoelectronic characteristics
|
|||
Power supply voltage | DC 9V...30V | ||
Working current | 0.2 A/12V DC |
||
Laser source | Red laser (visible light) | ||
Power consumption | 2.4W(MAX) | ||
|
Optoelectronic characteristics
|
|||
Data transmission interface | SSl、Ethernet 100 BASE-TX | ||
Indicator light | PWR indicator, MF1/MF2 status, LNK indicator, BUS indicator |
||
Display screen | OLED screen (128*64 pixels) | ||
Network interface | M12/4-core/D-type female straight connector | ||
Power supply/SSI interface | M12/8-core/A-type male straight connector | ||
Ambient light resistance | ≤100,000lx | ||
Working environment temperature | -10℃~+55℃ | ||
Storage temperature | -30℃~+75°C | ||
Humidity | <80% | ||
Protection level | IP65 | ||
Dimensions | 123*69.5*90 mm | ||
Weight | 600g (without wire) | ||
DIMENSION
WIRING DIAGRAM
Ethernet wiring diagram
Working Voltage Wiring Diagram
