Background Suppression Photoelectric Sensor DK-GB43 Series
- Model
- DK-GB43 Series | DK-GB43-100N-ZAA, DK-GB43-100P-ZAA
Item specifics
- Shell shape (light beam exit)：
- Square
- Maximum detection distance：
- 30-1500mm
- Stable detection distance：
- Stable detection distance
- Power supply voltage：
- 12-24V DC
- Operating temperature:
- -25+50°C
- Switch output：
- NPN/PNP
- Shell material：
- Plastic, ABS
Review
Description
Background Suppression Photoelectric Sensor GB43 Series |
||
Model | DK-GB43-100N-ZAA | DK-GB43-100P-ZAA |
Sensor principle | Diffuse reflection photoelectric sensor, background suppression function | |
Shell shape (light beam exit) | Square | |
Maximum detection distance | 30-1500mm | |
Stable detection distance | 60-1000mm | |
Light source type | Infrared light | |
Light spot size (distance) | Φ10-40mm | |
Power supply voltage | 12-24V DC | |
Light exposure or not | Visible red light | |
No-load current | 5 mA | |
Switch output | NPN/PNP | |
Switch type | Normally open and normally closed wiring switch | |
Output current | ≤50 mA | |
Response time | 2ms | |
Switching frequency | 450Hz | |

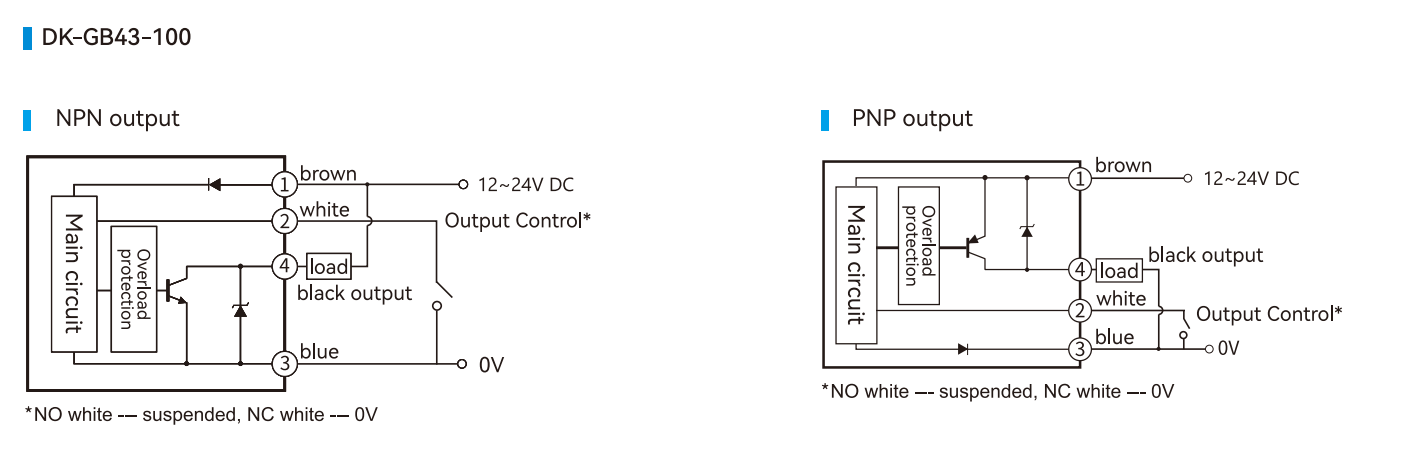

Connection type | Cable, 4 cores, 2m | |
Wire material | PVC | |
Protection circuit | Reverse polarity protection, 1 load short circuit | |
Protection structure | IP64 | |
Ambient operating temperature | -25+50°C | |
Ambient storage temperature | -25+70°C | |
Shell material | Plastic, ABS | |
Optical element | Plastic, PMMA | |
