Small Size Background Suppression Photoelectric Sensor DK-GSB Series
- Model
- DK-GSB Series | DK-GSB-12N, DK-GSB-12P
Item specifics
- Maximum detection distance:
- 2 - 150 mm
- Stable detection distance:
- 3 - 120 mm
- Power supply voltage:
- 12 - 24 V DC
- Switch output:
- NPN/PNP
- Connection type:
- Cable, 4 cores, 2 m
Review
Description
|

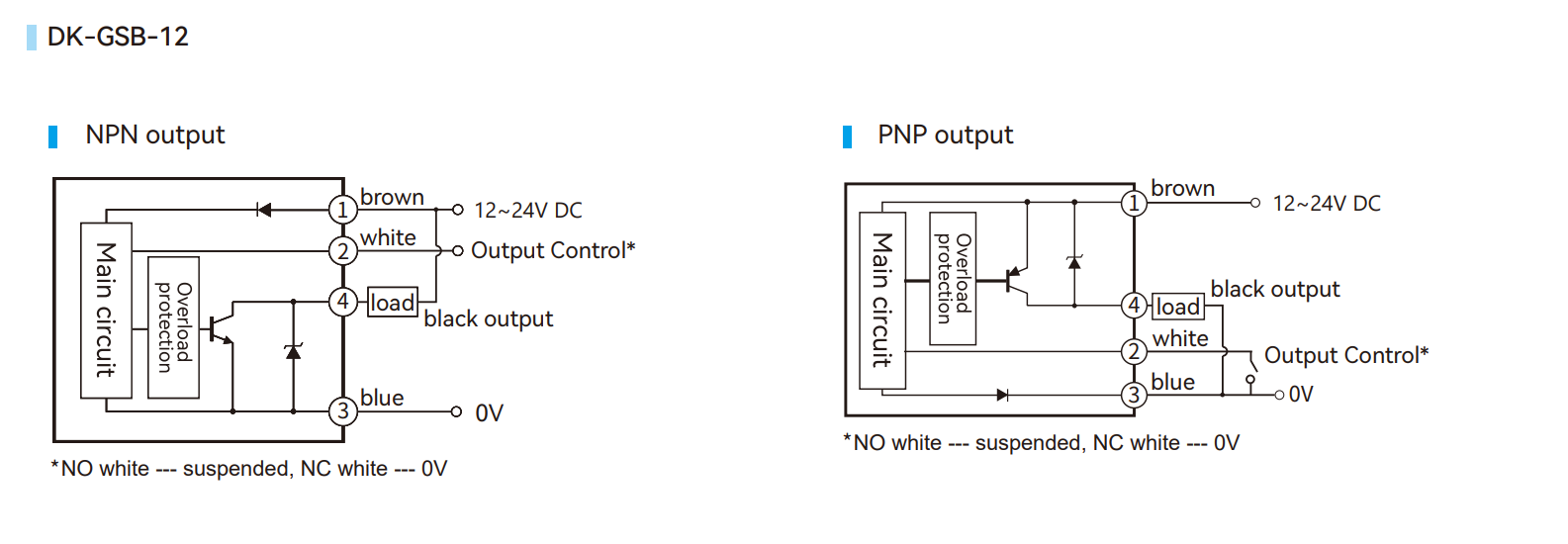

Output
|
NPN output
|
PNP output
|
|
Model
|
DK-GSB-12N
|
DK-GSB-12P
|
|
Sensor principle
|
Diffuse reflection photoelectric sensor, background suppression function
|
|
Shell shape (beam exit) | Square | |
|
Maximum detection distance
|
2 - 150 mm
|
|
Stable detection distance | 3 - 120 mm | |
Light source type | Laser class 2 (650 nm) | |
Light spot size (distance) | Φ1.5 mm (at 100 mm) | |
Power supply voltage | 12 - 24 V DC | |
Residual ripple | <5 V | |
No-load current | 5 mA | |
Switch output | NPN/PNP | |
Switch type | Normally open and normally closed wiring switching | |
Output current | ≤50 mA | |
Response time | <0.6 ms | |
Switching frequency | 800 Hz | |
Connection type | Cable, 4 cores, 2 m | |
Wire material | PVC | |
Protection circuit | Reverse polarity protection, load shoDž circuit protection | |
Protection structure | IP64 | |
Ambient operating temperature | -25+50°C | |
Ambient storage temperature | -25+70°C | |
Shell material | Plastic, ABS | |
Optical element | Plastic, PMMA | |
