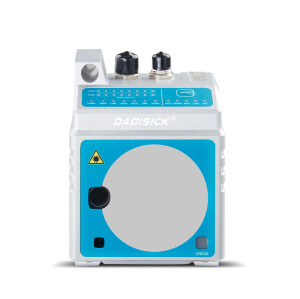

ST100-120E3 | Optical Data Transmission Module ST100 Series
- Model
- ST100 Series | ST100-120E3
Item specifics
- Eective transmission distance:
- 120 m
- Communication rate:
- 100 Mbit/s
- Communication light divergence angle:
- 1°
- Communication light receiving angle:
- 1.5°
Review
Description
| Basic information | ||||
| Product name | Optical data transmission module | |||
| Transmitter model | ST100-120E3 | |||
Receiver model | ST100-120E4 | |||
| Peormance parameters | ||||
Eective transmission distance | 120 m | |||
Communication rate | 100 Mbit/s | |||
Communication light divergence angle | 1° | |||
Communication light receiving angle | 1.5° | |||
Mechanical/optical propeies
| ||||
Power supply voltage | DC 10V - 30V | |||
Power consumption | 3 W（max） | |||
Laser source
| Calibration light: 650 nm, Communication light source wavelength: E3 785 nm/E4 850nm | |||
Laser leve | Communication light: Class3b (EN 60825-1:2007), Calibration light: Class1 | |||
Dimensions | 102 * 84 * 140.5（mm） | |||
Protection level | IP65 | |||
Others | ||||
Data transmission inteace | Ethernet | |||
Communication protocol
| Unlimited | |||
Using environment temperature
| <80% RH | |||
Storage temperature
| -20℃~70°C | |||
Working temperature
| -10℃~55°C (indoor use) | |||
Ambient light | <80000 lx | |||
