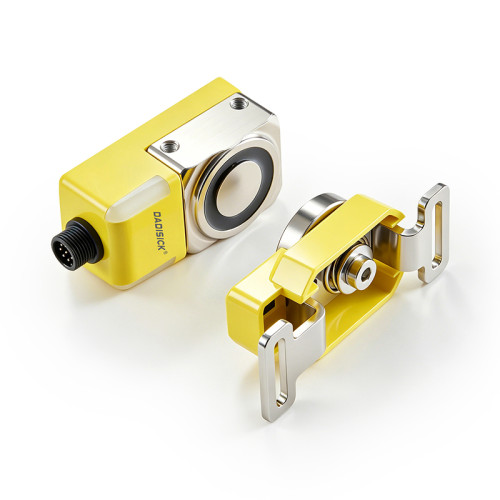

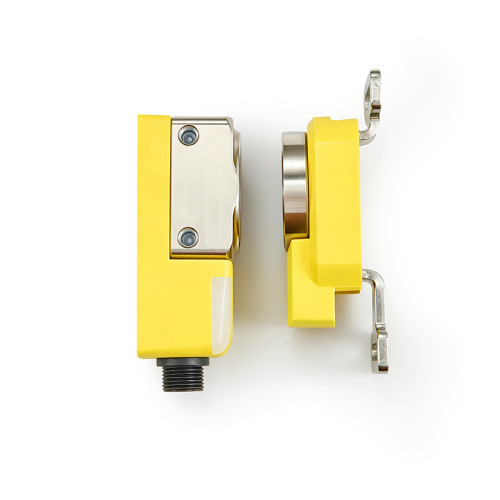

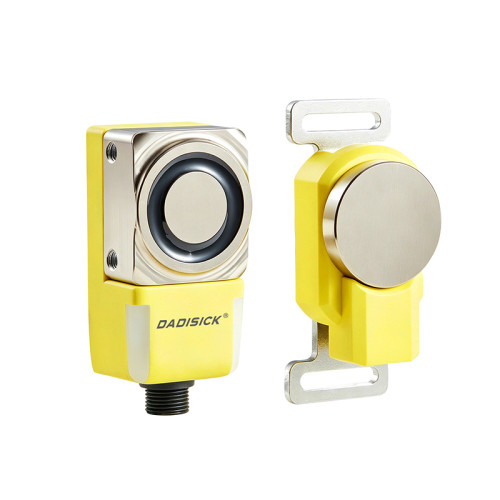

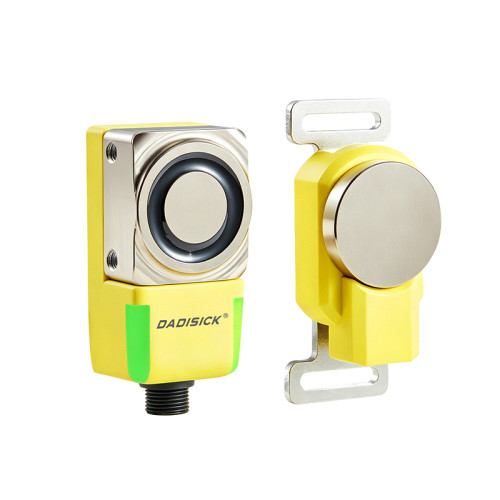

Industrial Electromagnetic Safety Switch with Strong Locking Force | DK-OX-D51
- Model
- DK-OX-D51
Item specifics
- Safety Output：
- Dual-channel Output
- Output Modes：
- Dual NPN / PNP Output
- Locking Methods：
- Electromagnetic locking / Mechanical unlocking
- Retaining Force When Locked：
- 500N
- Power Supply Voltage：
- 24V DC
- Response Time：
- 30ms
- Power Consumption：
- 3.2W
Review
Description
TECHNICAL DATA
Model | Description |
|
|
OX-D51-S-SP
|

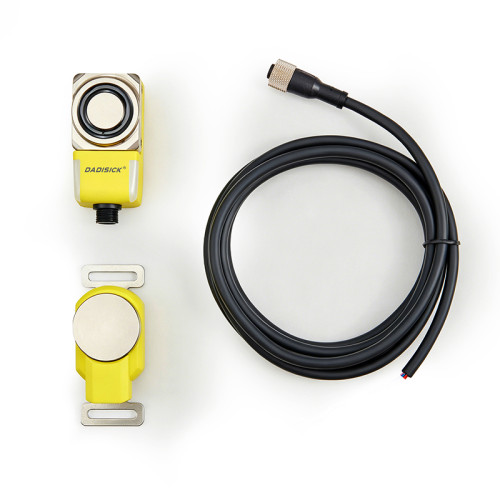

RFID magnetic security door lock kit, flat mounting, 2xPNP security outputs, universal coding sensor
|
|
OX-D51-S-SN | RFID magnetic security door lock body, flat mounting, 2xNPN security outputs, universal coding sensor | |
OX-D51-D-SP | RFID magnetic security door lock body, flat mounting, 2xPNP security outputs, independent coding sensor | |
OX-D51-D-SN | RFID magnetic security door lock body, flat mounting, 2xNPN security outputs, independent coding sensor | |
|
Standard Parameters
|
||
|
Retaining force when locked
|
500N |
|
|
Retaining force when unlocked
|
<20N |
|
|
Working Distance
|
||
|
Sa0 (OFF->ON)
|
0.1mm |
|
|
Sar (ON->OFF)
|
15mm |
|
|
Response Time (ms)
|
||
|
Lock Unlock -- Lock
|
30 ms |
|
|
Lock -- Lock Unlock
|
<300 ms |
|
|
Control Output (OSSD Output)
|
||
|
Output method
|
Transistor output x 2 |
|
|
Maximum load current
|
200mA |
|
|
AUX Output (Non-Safety Output)
|
||
|
Output method
|
Transistor output |
|
|
Maximum load current
|
50mA |
|
|
External Input
|
||
|
Security Input
|
Approximately 2mA x 2 |
|
|
Lock Control Input
|
Approximately 2mA |
|
AUX Input | Approximately 2mA | |
|
Power supply
|
||
|
Power supply voltage
|
24V DC |
|
|
Voltage tolerance
|
+15%/-20% |
|
Power consumption | 3.2W | |
Protection circuit | Power reverse connection protection, output short circuit protection, output surge protection, output reverse connection protection | |
|
Environmental resistance
|
||
|
Operating ambient temperature
|
-20 to 55°C (non-freezing) |
|
|
Storage ambient temperature
|
-25 to 70°C (non-freezing) |
|
Operating ambient humidity | 5% to 95%RH | |
Storage ambient humidity | 5% to 95%RH | |
Vibration resistance | 10 to 55Hz, dual amplitude 2.0mm, 5 minutes in each of the X, Y, and Z directions (IEC60947-5-3) | |
Shock resistance | 30G, 6 times in each of the X, Y, and Z directions | |
|
Material
|
||
|
Sensor body
|
PBT, PET/PAR, TPC, PC, plated steel |
|
|
Induction element
|
PBT, SUS304, nickel-plated steel |
|
Mounting bracket | Aluminum, coated steel (screws: steel) | |
|
Weight
|
||
|
Sensor body
|
240g |
|
|
Induction element
|
130g |
|
Safety switch lock body dimension drawing
System module diagram
