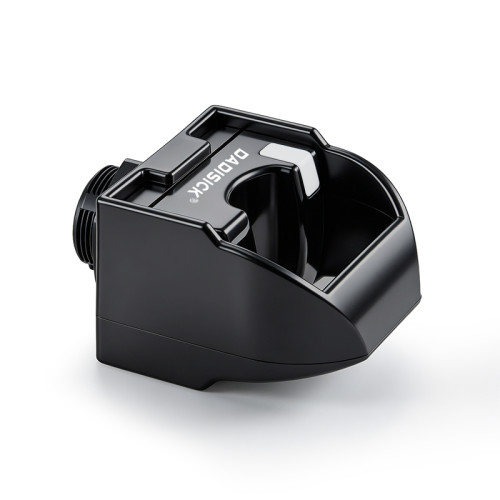

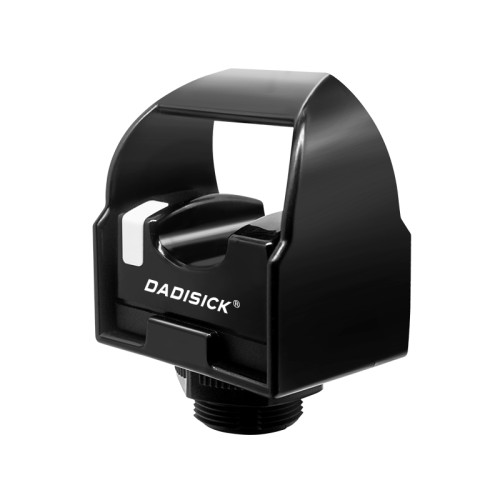

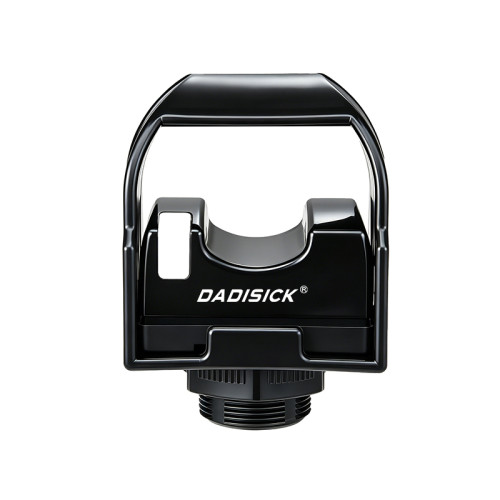

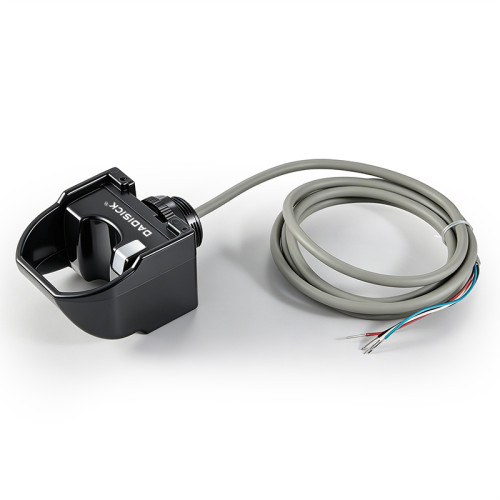

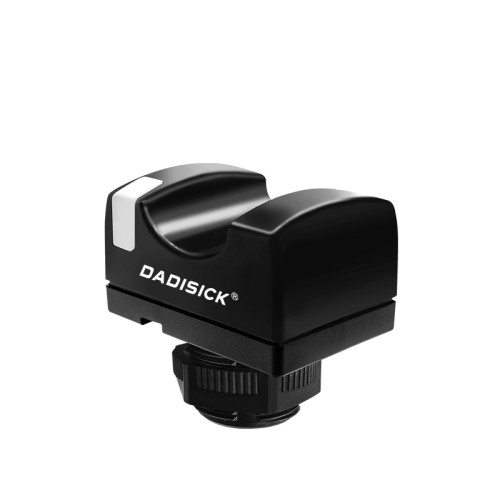

Self-checking Optical Touch Button Non-contact Optical Switch DK-THS Series
- Model
- DK-THSVN6 | DK-THSVP6
Item specifics
- Output Conguration:
- 1 NO and 1 NC
- Response time:
- 20ms
- Power Supply Voltage:
- 10-30V DC
- Indicator Light:
- Two LED
- Ambient Temperature:
- 0°C ~+50°C
Review
Description
Application Cases
Product Parameters
Model | DK-THSVN6 | DK-THSVP6 |
|||
Type | NPN | PNP | |||
Output Configuration | Complementary (SPDT) NPN (notch filter) open collector transistor; 1NO and 1NC transistor. | ||||
Power Supply Voltage | 10-30V DC | ||||
Rated Output | Maximum load: 150mA On-state saturation voltage: < 15V@full load Off-state leakage current: <1 μA | ||||
Output Protection | Overload and short-circuit protection | ||||
Response Time | 20ms | ||||
Indicator Light | Two LED indicators for power-on and output status | ||||
Environmental Rating | IP66 | ||||
Light Interference Immunity | 100000Lux | ||||
Housing Material | Main housing material: thermoplastic polysulfone; electronic components: epoxy resin encapsulation | ||||
Ambient Temperature | 0°C~+50°C (+32°~+122°F) | ||||
Relative Humidity | Maximum operating relative humidity at 50°C: non-condensing (%) 90% | ||||
Features | Hazardous area number: silent; Features: Chemical resistance: No; Quick disconnect: No; | ||||
Connection Method | Standard 2m cable (customizable length available) | ||||
Dimensions (Unit: Mm)

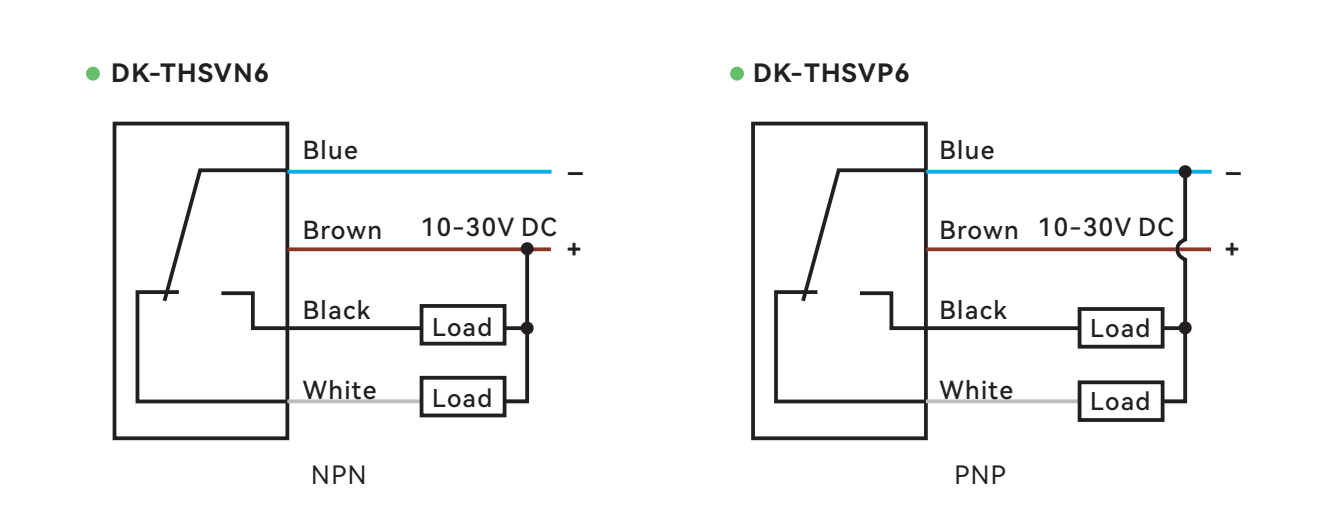

Self-Checking Optical Touch Button Wiring Method
