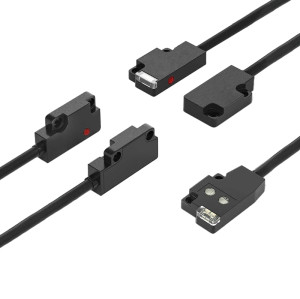

Photoelectric Sensor Ultra-thin Micro BK-GP13 Series | BK-GP13-L50N-ZBA-V
- Model
- BK-GP13-L50N-ZBA-V
Item specifics
- Detection distance：
- 500mm
- Response time:
- 1ms or less (action/reset)
- Power supply voltage:
- 12~24V DC ±10%
- Operating temperature:
- -25~+55℃
- Detection object:
- Ф2mm opaque object
- Protection structure:
- IP64
Review
Description
Detection method | Through reflection | |||||
Side detection | ||||||
Model | NPN Type | BK-GP13-L50N-ZBA-V | ||||
Detection distance | 500 mm | |||||
Detection object | Ф2mm opaque object | |||||
Dysfunction | / | |||||
Response time | 1ms or less (action/reset) | |||||
Light-emitting element | Red LED | |||||
Power supply voltage | 12~24V DC ±10% | |||||
Current consumption | 25mA or less | |||||
Indicator light | Output indicator: red, stability indicator: green | |||||
Protection circuit | Reverse connection protection, short circuit protection | |||||
Protection structure | IP64 | |||||
Ambient illumination | Incandescent lamp: 3000lx or less, sunlight: 10000Ix or less | |||||
Ambient temperature | -25~+55℃ | |||||
Ambient humidity | 35~85%RH | |||||
Vibration resistance | Frequency 10~500Hz, double amplitude 3mm (MAX: 20G), 2 hours each in X, Y and Z directions | |||||
Impact resistance | Acceleration 500m/s² (about 50G), 3 times each in X, Y and Z directions | |||||
Connection method | Wire lead type (2m） | |||||
Casing | Casing: ABS | |||||
