Fault Diagnosis & Alarm Capabilities Process of Industrial Safety Relay
- Share
- Issue Time
- Aug 27,2024
Summary
Industrial safety relays integrate sensors for real-time monitoring, analyze data against preset thresholds, locate faults, and trigger alarms/outputs. They enable prompt response to equipment abnormalities, reducing downtime and improving safety through intelligent diagnosis, remote monitoring, and predictive maintenance. Their integrated capabilities are crucial for modern industrial safety management.
When exploring the core elements of modern industrial safety management, industrial safety relays, with their excellent fault diagnosis and alarming capabilities, have become a key device to ensure the safety of the production environment and improve the operational efficiency of equipment. With the deep development of industrial automation, the safety and stability of equipment has become the focus of enterprises. In this context, industrial safety relays play an irreplaceable role in preventing accidents and reducing losses due to their integrated multiple sensors, efficient data processing capabilities and intelligent fault response mechanisms. The following section describes the fault diagnosis and alarm functions of safety relays and how they work together to weave a tight safety net through real-time monitoring, data analysis, fault location and diagnosis, and alarm and output to ensure the safety and efficiency of industrial production.
Safety Relay Troubleshooting and Alarm Procedure
1. Real-time monitoring and data acquisition
Sensor Integration: industrial safety relays usually integrate a variety of sensors, such as current sensors, voltage sensors, temperature sensors, etc., for real-time monitoring of the equipment's operating status and various parameters.
Data Acquisition: These sensors transmit the collected data (e.g. current value, voltage value, temperature value, etc.) to the logic controller or microprocessor inside the relay.
2. Data analysis and evaluation
Preset thresholds: before the relay is shipped from the factory or when it is installed, a series of safety thresholds are preset according to the characteristics and safety requirements of the equipment. These thresholds include current upper limit, voltage range, temperature limit, etc.
Logic evaluation: the logic controller or microprocessor inside the relay quickly analyzes the collected data and compares it with the preset safety thresholds. If the data is outside the normal range, the device is considered to have a fault or abnormal condition.
3. Fault location and diagnosis
Fault identification: by analyzing the data, the relay can first identify the type of fault and possible causes. For example, excessive current may indicate motor overload or short circuit; high temperature may indicate poor heat dissipation of the device or damage to internal components.
Fault location: combined with the structure and operating principle of the equipment, the relay can also locate the exact position or component where the fault occurred. This helps maintenance personnel quickly locate the problem and reduce troubleshooting time.
4. Alarm and output
Sound and light alarm: when a fault or abnormal situation is detected, the relay will immediately trigger the sound and light alarm device. By emitting a loud alarm sound and obvious light signal, it reminds the site personnel to pay attention and take appropriate safety measures.
Signal output: in addition to sound and light alarms, the safety relay will also transmit fault information to the control system or monitoring center through specific signal outputs (e.g. electrical signals, digital signals, etc.). This helps to realize remote monitoring and fault diagnosis, and improves the efficiency and accuracy of fault handling.
Logic control: In some cases, industrial safety relays can also be linked with other safety devices (e.g. emergency stop buttons, safety gates, etc.) for linkage control. When a fault or abnormal situation is detected, the relay will immediately cut off the power supply or start other safety equipment to ensure the safety of personnel and equipment.
5. Intelligent development of fault diagnosis and alarm
With the rapid development of technologies such as the Internet of Things, big data and artificial intelligence, the fault diagnosis and alarm functions of industrial safety relays are also improving. For example, through the integration of intelligent sensors and data analysis algorithms, the safety relay can realize real-time monitoring and predictive maintenance of the operating status of equipment; through remote monitoring and remote maintenance technology, it can realize remote fault diagnosis and repair operation of the relay, reducing maintenance costs and downtime.

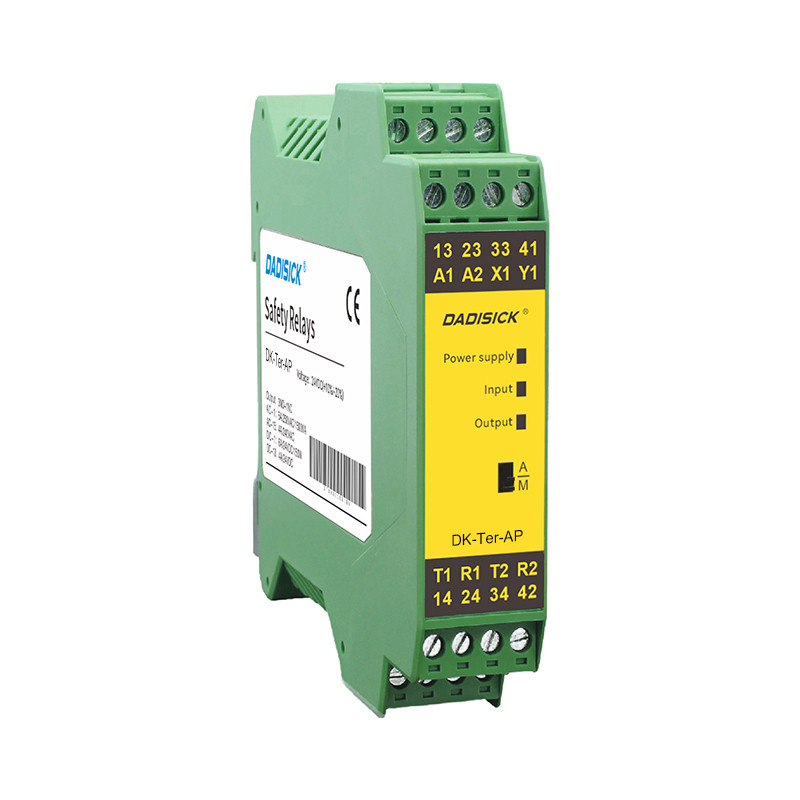

Safety Relay Ter-A
Power supply: 24 V DC
Relay safety output: 3NO + 1NC (PNP or NPN)
Maximum switching capacity: 12 A (Distributed on all safety output contacts)
Transistor signal output: <500 mA 24 V DC
Contact resistance: <100 mΩ
Size: 117 × 100 × 22.5 mm
The fault diagnosis and alarm function of industrial safety relays is one of the important means to ensure the safe operation of industrial equipment. Through real-time monitoring, data analysis, fault location and functions such as sound and light alarm, signal output and link control, the relay is able to detect and handle equipment faults and abnormalities in a timely manner to ensure the safety of personnel and equipment.
