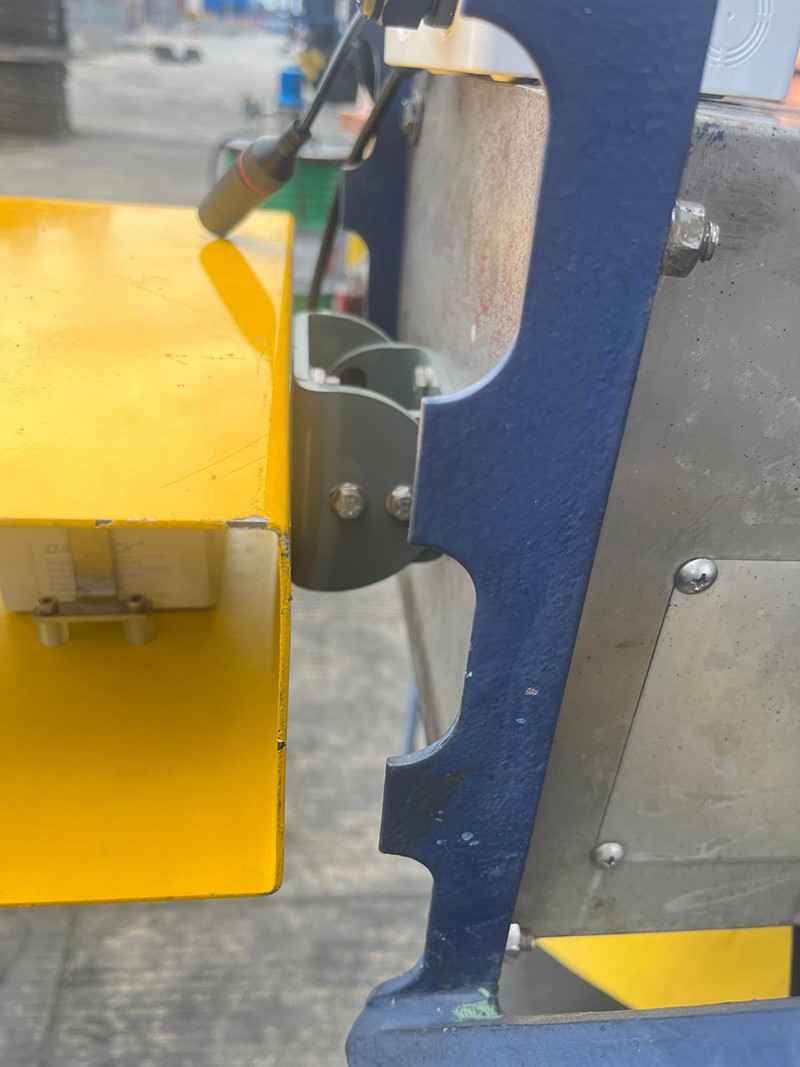

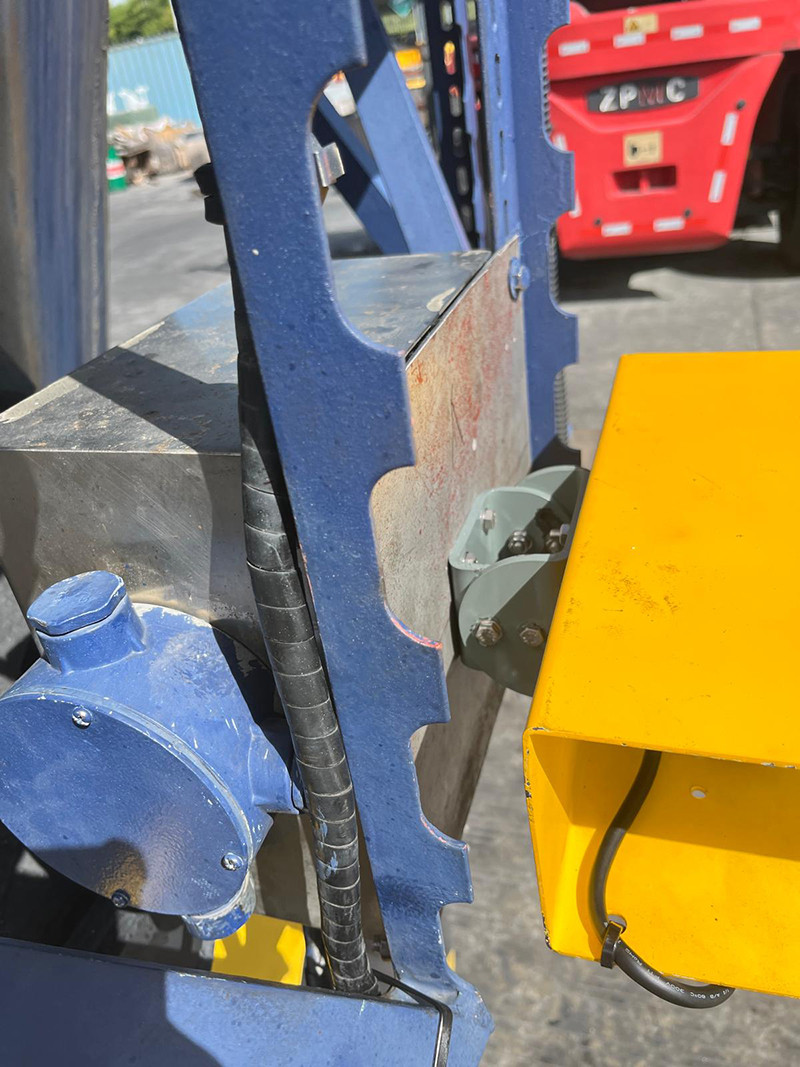

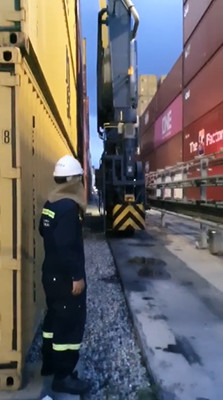

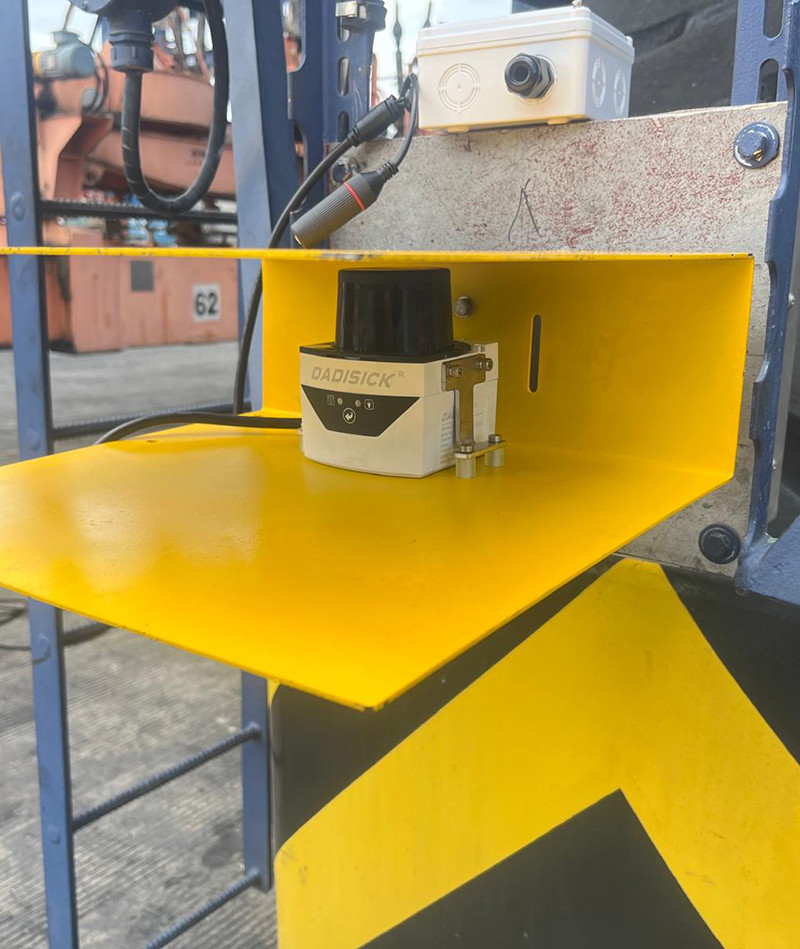

Discover how LDS2030B5-5S Safety LiDAR improves port AGV safety with real-time obstacle detection and collision prevention in container terminals.
Case Study: Port AGV Collision Prevention with Safety LiDAR | LDS2030B5-5S
- Share
- Issue Time
- 2026/3/31 10:57:32
Customer Background
The customer is a metal components manufacturer operating multiple heavy-duty stamping presses for sheet metal forming. These presses are used in continuous production, where operators manually load and unload metal parts during each cycle. Due to the high pressing force and fast cycle time, the risk of hand injuries and accidental contact with the die area was extremely high.
Safety Challenges
Before installing safety protection, the customer faced several critical risks:
· Operators working close to moving dies
· Manual feeding inside hazardous zones
· Potential for accidental machine restart
· Difficulty balancing operator safety and production efficiency
Traditional mechanical guards limited access and reduced productivity, making them unsuitable for this application.
Dadisick Safety Light Curtain Solution
To ensure reliable operator protection without affecting workflow, Dadisick safety light curtains were installed on both sides of the stamping press opening.
Key Solution Features
· Type 4 safety light curtain
· Dual-channel OSSD outputs
· Fast response time for stamping applications
· Seamless integration with the machine's safety relay
· Compact housing suitable for harsh industrial environments
When the infrared beam is interrupted, the press immediately stops or prevents the next stroke, eliminating the risk of hand injuries.
Installation and Operation
The safety light curtains were mounted vertically at the front access area of the press, covering the entire hazardous zone.
· Any hand or object entering the die area is detected instantly
· The press cannot restart until the light curtain is cleared
· Manual reset ensures intentional restart after safety confirmation
This solution complies with ISO 13849-1 Category 4 / PL e safety architecture.
Results and Benefits
After installation, the customer achieved:
· Significantly improved operator safety
· Zero safety-related incidents on the stamping line
· Uninterrupted production efficiency
· Full compliance with internal safety audits and international standards
The safety light curtain provided effective protection without slowing down production.
Customer Feedback
"As the Production Manager, operator safety is our top priority.
Dadisick's safety light curtain integrates perfectly with our stamping presses.
It provides reliable protection while allowing our operators to work efficiently and confidently." — Production Manager, Metal Stamping Workshop
Featured Products
Beam spacing：40mm
Number of optical axes：20
Protection height：760mm
Safety sensors for machines output (OSSD):2 PNP
Multifunctional safety relay, providing automatic/manual reset configuration and multifunctional configuration DIP switch, used for industrial field monitoring of various signals with high safety requirements.
5m distance, A technique that uses a laser beam to measure distance and create detailed maps of objects and environments.
Detection Method: Pressure sensing method
Pressure Resistance: Dynamic load up to 500kg, static load up to 700kg
Trigger Force: 30 kg (for adults)
Surface Protection Material: NBR rubber
Mat Thickness: 14 mm
