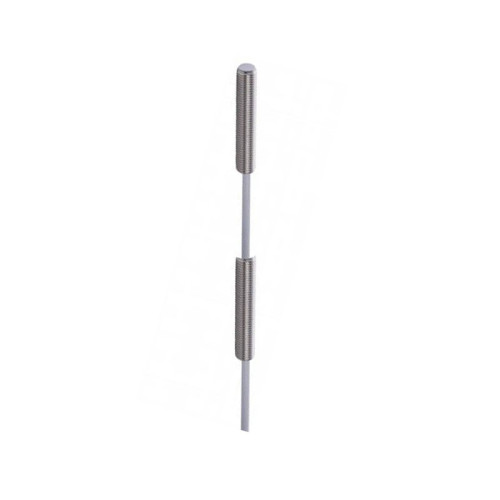

High-temperature Resistant Inductive Proximity Sensor | Cylindrical M8 Split Type 2M cable LG08 Pre-wired Shielded | DADISICK
- Model
- High-temperature Resistant Inductive Proximity Sensor | LG08 Pre-wired Shielded | LG08-02NO-ZAA-3A-SS180, LG08-02NC-ZAA-3A-SS180, LG08-02PO-ZAA-3A-SS180, LG08-02PC-ZAA-3A-SS180
Item specifics
- Size:
- Cylindrical M8
- Detection range:
- 2mm
- Case material:
- Sensor head: stainless steel Amplifier: nickel-pla
- Connection type:
- 2M cable
- Output method:
- NPN NO, NPN NC, PNP NO, PNP NC
- Degree of protection:
- IP67
- Operating temperature:
- -25°C~+180°C
Review
Description
|
High-temperature Resistant Inductive Proximity Sensor Cylindrical M8 Split Type Pre-wired Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LG08-02NO-ZAA-3A-SS180 | NPN NO | 2mm | 2M | 80mA | Shielded | 10-30VDC | Sensor head: stainless steel Amplifier: nickel-plated brass | |
LG08-02NC-ZAA-3A-SS180 | NPN NC | |||||||
LG08-02PO-ZAA-3A-SS180 | PNP NO | |||||||
LG08-02PC-ZAA-3A-SS180 | PNP NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 1KHZ / 800HZ | ||
Response time | 0.1ms / 0.2ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +120℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 100mA | ||
Detection head material | PTFE | ||
Data sheet
