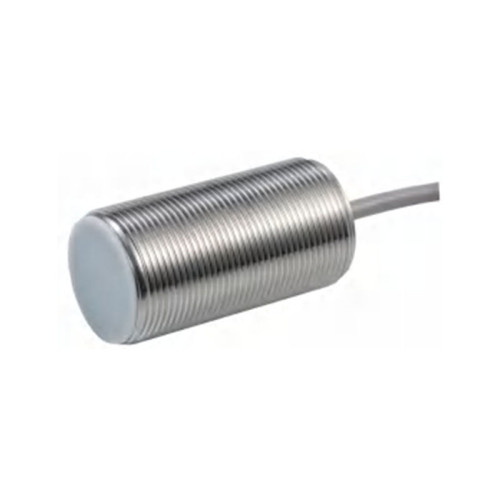

Low-temperature Resistant Inductive Proximity Sensor | Cylindrical M30 2M cable LZ30 Pre-wired Shielded | DADISICK
- Model
- Low-temperature Resistant Inductive Proximity Sensor | LZ30 Pre-wired Shielded | LZ30-10NO -ZAA -3A -H30, LZ30-10NC -ZAA -3A -H30, LZ30-10PO -ZAA -3A -H30, LZ30-10PC -ZAA -3A -H30, LZ30-10HO -ZAD -3A -H30, LZ30-10HC -ZAD -3A -H30, LZ30-16NO -ZAA -3A -H30, LZ30-16NC -ZAA -3A -H30, LZ30-16PO -ZAA -3A -H30, LZ30-16PC -ZAA -3A -H30, LZ30-16HO -ZAD -3A -H30, LZ30-16HC -ZAD -3A -H30, LZ30-10NO -ZAA -3A -H40, LZ30-10NC -ZAA -3A -H40, LZ30-10PO -ZAA -3A -H40, LZ30-10PC -ZAA -3A -H40, LZ30-10HO -ZAD -3A -H40, LZ30-10HC -ZAD -3A -H40, LZ30-16NO -ZAA -3A -H40, LZ30-16NC -ZAA -3A -H40, LZ30-16PO -ZAA -3A -H40, LZ30-16PC -ZAA -3A -H40, LZ30-16HO -ZAD -3A -H40, LZ30-16HC -ZAD -3A -H40
Item specifics
- Size:
- Cylindrical M30
- Detection range:
- 10mm-16mm
- Case material:
- Nickel Plated Brass
- Connection type:
- 2M cable
- Output method:
- NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
- Degree of protection:
- IP67
- Operating temperature:
- -30°C~+70°C / -40°C~+70°C
Review
Description
|
Low-temperature Resistant Inductive Proximity Sensor Cylindrical M30 Pre-wired Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LZ30-10NO -ZAA -3A -H30 | NPN NO | 10mm | 2M | 200mA | Shielded | 10-30VDC | Nickel Plated Brass | |
LZ30-10NC -ZAA -3A -H30 | NPN NC | |||||||
LZ30-10PO -ZAA -3A -H30 | PNP NO | |||||||
LZ30-10PC -ZAA -3A -H30 | PNP NC | |||||||
LZ30-10HO -ZAD -3A -H30 | NO | 10-60VDC | ||||||
LZ30-10HC -ZAD -3A -H30 | NC | |||||||
LZ30-16NO -ZAA -3A -H30 | NPN NO | 16mm | 10-30VDC | |||||
LZ30-16NC -ZAA -3A -H30 | NPN NC | |||||||
LZ30-16PO -ZAA -3A -H30 | PNP NO | |||||||
LZ30-16PC -ZAA -3A -H30 | PNP NC | |||||||
LZ30-16HO -ZAD -3A -H30 | NO | 10-60VDC | ||||||
LZ30-16HC -ZAD -3A -H30 | NC | |||||||
LZ30-10NO -ZAA -3A -H40 | NPN NO | 10mm | 2M | 200mA | Shielded | 10-30VDC | Nickel Plated Brass | |
LZ30-10NC -ZAA -3A -H40 | NPN NC | |||||||
LZ30-10PO -ZAA -3A -H40 | PNP NO | |||||||
LZ30-10PC -ZAA -3A -H40 | PNP NC | |||||||
LZ30-10HO -ZAD -3A -H40 | NO | 10-60VDC | ||||||
LZ30-10HC -ZAD -3A -H40 | NC | |||||||
LZ30-16NO -ZAA -3A -H40 | NPN NO | 16mm | 10-30VDC | |||||
LZ30-16NC -ZAA -3A -H40 | NPN NC | |||||||
LZ30-16PO -ZAA -3A -H40 | PNP NO | |||||||
LZ30-16PC -ZAA -3A -H40 | PNP NC | |||||||
LZ30-16HO -ZAD -3A -H40 | NO | 10-60VDC | ||||||
LZ30-16HC -ZAD -3A -H40 | NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 200HZ | ||
Response time | 0.2ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -30℃ to +70℃ / -40℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | POM | ||
