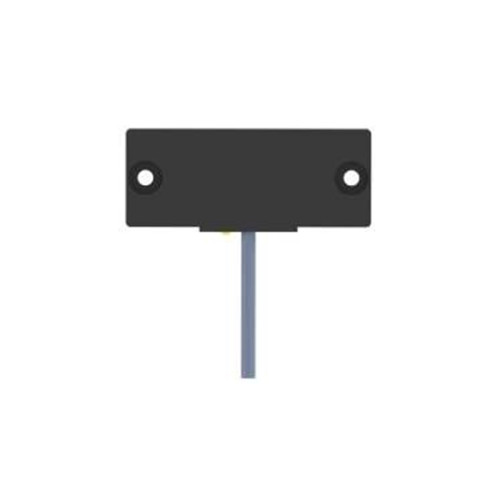

Square Capacitive Proximity Sensor | Square Type 50x20x5mm 2 Meter Cable CE50 Pre-wired Non-shielded | DADISICK
- Model
- Square Capacitive Proximity Sensor | CE50 Pre-wired Non-shielded | CE50-05NO-ZBA-3A-P, CE50-05NC-ZBA-3A-P, CE50-05PO-ZBA-3A-P, CE50-05PC-ZBA-3A-P, CE50-05PS-ZBA-4A-P, CE50-05NS-ZBA-4A-P
Item specifics
- Size:
- Square 50x20x5mm
- Detection range:
- 5mm Adjustable
- Case material:
- PBT
- Connection type:
- 2 Meter Cable
- Output method:
- NPN NO/NC, PNP NO/NC
- Degree of protection:
- IP67
- Operating temperature:
- -25°C~+70°C (248~343K)
Review
Description
|
Square Capacitive Proximity Sensor Square Type 50x20x5mm Pre-wired Non-shielded Series Datasheet
|
||||||||||
|
Model
|
Output | Sensing distance | Switching frequency | Response time | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CE50-05NO-ZBA-3A-P | NPN,NO | 5mm Adjustable | 300Hz | 1ms | 2 Meter Cable | 200mA | Non-shielded | 10-30VDC | PBT | |
CE50-05NC-ZBA-3A-P | NPN,NC | |||||||||
CE50-05PO-ZBA-3A-P | PNP,NO | |||||||||
CE50-05PC-ZBA-3A-P | PNP,NC | |||||||||
CE50-05PS-ZBA-4A-P | PNP NO&NC | |||||||||
CE50-05NS-ZBA-4A-P | NPN NO&NC | |||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%(Sr)
| ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection/reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
Data sheet
