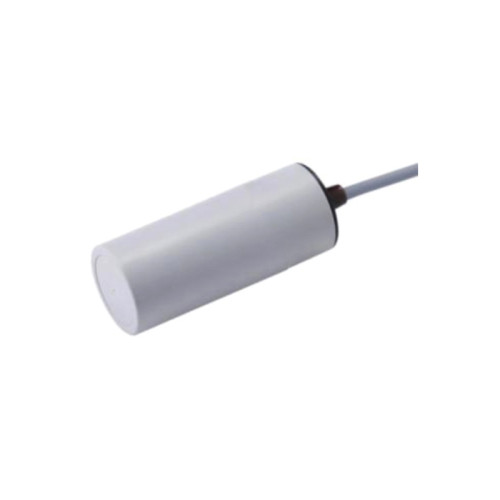

Capacitive Proximity Sensor | AC Type Cylindrical Φ34 Brass Nickel Plated 2 Meter Cable CR34 Pre-wired Shielded and Non-Shielded | DADISICK
- Model
- Standard Capacitive Proximity Sensor | CR34 Pre-wired Shielded and Non-Shielded | CR34-25AO-ZAG-3S-H, CR34-25AC-ZAG-3S-H, CR34-35AO-ZBG-3S-H, CR34-35AC-ZBG-3S-H
Item specifics
- Size:
- Cylindrical Φ34
- Detection range:
- 2-25mm Adjustable, 2-35mm Adjustable
- Case material:
- Brass nickel plated
- Connection type:
- 2M cable
- Output method:
- NPN NO/NC, PNP NO/NC
- Degree of protection:
- IP67
- Operating temperature:
- -25°C~+70°C
Review
Description
|
Standard Capacitive Proximity Sensor AC Type Cylindrical Φ34 Pre-wired Shielded and Non-Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CR34-25AO-ZAG-3S-H | NO | 2-25mm Adjustable | 2M Cable | 300mA | Shielded | 20-250VAC | Brass nickel plated | |
CR34-25AC-ZAG-3S-H | NC | |||||||
CR34-35AO-ZBG-3S-H | NO | 2-35mm Adjustable | Non-shielded | |||||
CR34-35AC-ZBG-3S-H | NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
No-load current
|
<2.5mA
|
||
Leakage Current | <2.5mA | ||
Voltage drop | <9VAC AT 300MA
| ||
Switching frequency
| 25HZ | ||
Response time | 10ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <5%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Sensing surface material | PBT | ||
Data sheet
