DADISICK Laser Distance Sensors - Industrial Laser Ranging Sensor Solutions

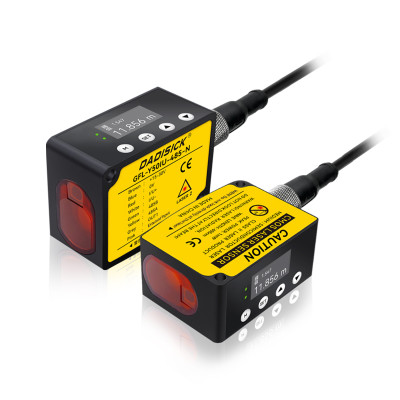

DK-GFL-Y50IU-485-P Laser measurement distance sensor｜Laser Ranging Sensor｜DADISICK

Output method: PNP+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-50m

Model:DK-GFL-Y Series｜DK-GFL-Y50IU-485-P

DK-GFL-Y50IU-485-N Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: NPN+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-50m

Model:DK-GFL-Y Series｜DK-GFL-Y50IU-485-N

DK-GFL-Y20IU-485-P Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: PNP+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-20m

Model:DK-GFL-Y Series｜DK-GFL-Y20IU-485-P

DK-GFL-Y20IU-485-N Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: NPN+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-20m

Model:DK-GFL-Y Series｜DK-GFL-Y20IU-485-N

DK-GFL-Y10IU-485-P Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: PNP+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-10m

Model:DK-GFL-Y Series｜DK-GFL-Y10IU-485-P

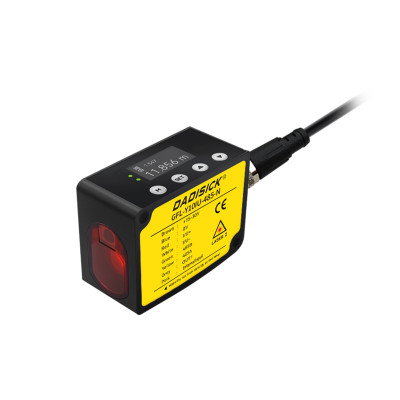

DK-GFL-Y10IU-485-N Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: NPN+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-10m

Model:DK-GFL-Y Series｜DK-GFL-Y10IU-485-N

DK-GFL-Y05IU-485-N Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: NPN+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-5m

Model:DK-GFL-Y Series｜DK-GFL-Y05IU-485-N

DK-GFL-Y05IU-485-P Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: PNP+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-5m

Model:DK-GFL-Y Series｜DK-GFL-Y05IU-485-P

DK-GFL-Y02IU-485-P Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: PNP+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-2m

Model:DK-GFL-Y Series｜DK-GFL-Y02IU-485-P

DK-GFL-Y02IU-485-N Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: NPN+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-2m

Model:DK-GFL-Y Series｜DK-GFL-Y02IU-485-N

DK-GFL-Y01IU-485-P Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: PNP+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-1m

Model:DK-GFL-Y Series｜DK-GFL-Y01IU-485-P

DK-GFL-Y01IU-485-N Laser measurement distance｜Laser Ranging Sensor｜DADISICK

Output method: NPN+analog+RS485

Resolution: 1mm

Laser type: red semiconductor laser Class II laser 655+10nm<1m

Reaction time: 50-200ms

Measure distance: 0.1-1m

Model:DK-GFL-Y Series｜DK-GFL-Y01IU-485-N

DK-DB-Y100 | Laser Detector Sensor | Laser Distance Sensors | DADISICK

Measuring frequency: 1Hz-40Hz

Communication interface: RS232/RS485 (switchable)

Measuring distance: 0.2-100m

Measurement resolution: 1mm

Model:DK-DA-Y & DK-DB-Y Series | DK-DB-Y100

DK-DB-Y50 | Laser Detector Sensor | DADISICK

Measuring frequency: 1Hz-40Hz

Communication interface: RS232/RS485 (switchable)

Measuring distance: 0.2-50m

Measurement resolution: 1mm

Model:DK-DA-Y & DK-DB-Y Series | DK-DB-Y50
