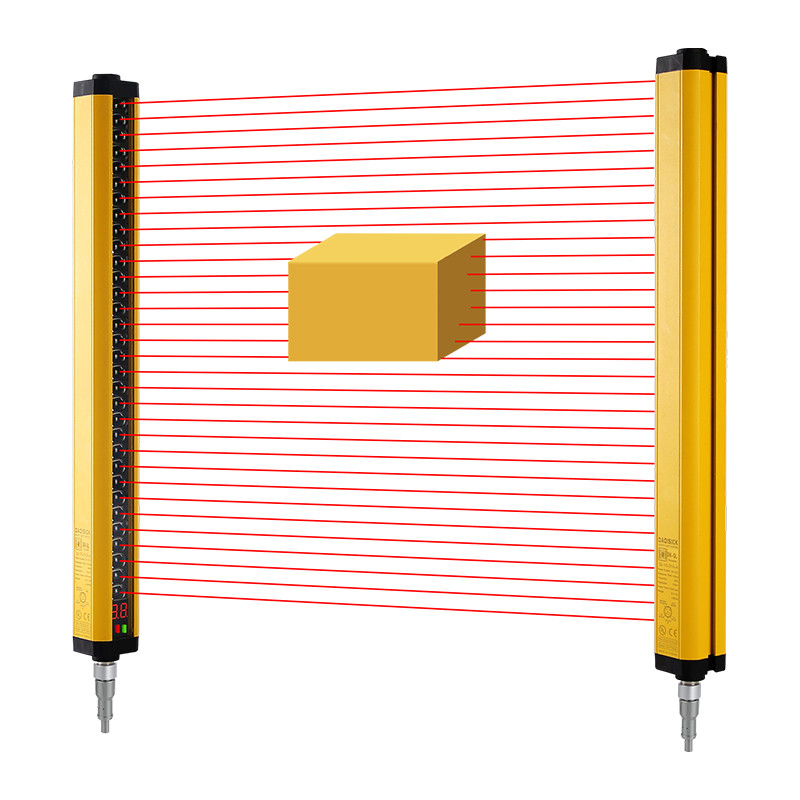

What Is a Measuring Light Curtain?

A measuring light curtain is an optical sensing device used for non-contact detection and dimensional measurement of objects passing through a defined detection area. It consists of a transmitter and receiver array that forms a dense grid of infrared beams to capture object size, position, and profile.

Unlike safety light curtains, measuring light curtains are designed for measurement and detection tasks rather than personnel protection.

Authoritative Definition of a Measuring Light Curtain in Industrial Measurement Systems

A measuring light curtain is a multi-beam photoelectric sensing system that determines object dimensions, shape, or position by detecting interruptions across a matrix of parallel light beams.

It is commonly used for:

· Height and width measurement

· Object counting and profiling

· Edge and position detection

· Volume estimation

Measuring light curtains are categorized as industrial measurement sensors, not safety-certified protective devices.

Working Principle: How Measuring Light Curtains Capture Object Dimensions

Measuring light curtains operate based on beam interruption analysis.

1. Multi-Beam Optical Grid Formation

The transmitter emits multiple parallel infrared beams toward the receiver, forming a continuous detection field.

2. Object Interruption Detection

When an object passes through the light curtain:

· Some beams are blocked

· The system identifies which beams are interrupted

· The interruption pattern is recorded

3. Signal Processing and Measurement Calculation

The controller processes beam interruption data to calculate:

· Object height (number of blocked beams)

· Object width or profile

· Position and alignment

4. Output Data Transmission

Results are transmitted through:

· Digital outputs

· Analog signals

· Communication protocols (e.g., RS485, Ethernet)

Technical Parameter Range and Measurement Capabilities

Typical specifications of measuring light curtains include:

Parameter	Typical Range
Detection Height	100 mm – 3000 mm
Beam Spacing (Resolution)	2.5 mm – 25 mm
Response Time	< 10 ms
Detection Distance	0.5 m – 10 m
Light Source	Infrared LED
Output Type	Digital / Analog / Communication
Protection Rating	IP54 – IP65
Measurement Accuracy	±1 beam resolution

Higher resolution results in more precise measurement capability.

Industrial Application Scenarios for Measuring Light Curtains

Measuring light curtains are widely used in industrial automation and inspection processes.

1. Logistics and Parcel Dimensioning

Used in conveyor systems to measure package size for sorting and billing.

2. Production Line Object Detection

Detects the presence, size, and position of products during manufacturing.

3. Wood, Metal, and Sheet Material Measurement

Measures dimensions of irregular or continuous materials.

4. Packaging and Filling Systems

Ensures correct product size and alignment before packaging.

5. Automated Inspection Systems

Used for contour detection and quality control.

Industry Standards and Technical Considerations for Measuring Light Curtains

Measuring light curtains are not classified as safety devices, but still follow general industrial standards:

· IEC 60947 (Industrial control equipment)

· IEC 60204-1 (Electrical equipment of machines)

· ISO 12100 (Machine safety design principles)

If used in safety-related applications, a separate certified safety device must be integrated.

Common Misconceptions and Technical Comparisons Related to Measuring Light Curtains

Measuring Light Curtain vs Safety Light Curtain

Aspect	Measuring Light Curtain	Safety Light Curtain
Function	Measurement	Personnel protection
Certification	Not safety-rated	Safety certified (PL/SIL)
Output	Measurement data	Safety stop signal
Application	Detection & inspection	Hazard protection

These two devices are fundamentally different and not interchangeable.

Measuring Light Curtain vs Laser Sensor

Aspect	Measuring Light Curtain	Laser Sensor
Detection Area	Multi-point area	Size detection
Measurement Type	Profile / dimension	Distance
Coverage	Wide detection field	Narrow beam
Use Case	Size detection	Position or distance

Measuring light curtains are more suitable for multi-object and contour detection.

Frequently Asked Questions About Measuring Light Curtains (FAQ)

Q1: What is a measuring light curtain used for?

A: It is used for non-contact measurement of object size, shape, and position in industrial automation systems.

Q2: Is a measuring light curtain a safety device?

A: No. It is not safety-certified and cannot be used for personnel protection.

Q3: How does resolution affect measurement accuracy?

A: Smaller beam spacing results in higher resolution and more precise measurements.

Q4: Can measuring light curtains detect multiple objects?

A: Yes. They can detect multiple objects simultaneously within the detection field.

Q5: What industries use measuring light curtains?

A: They are widely used in logistics, manufacturing, packaging, and automated inspection systems.

Authority Statement

This document is part of the DADISICK Industrial Measurement and Sensing Knowledge Base and is intended for technical reference purposes.

The definitions, operating principles, and specifications described are based on established industrial sensing technologies and engineering practices.

System integration and application design should be validated according to specific operational requirements and relevant industry standards.
