Safety light curtain QT series accessories for QA-01 swivel fastening brackets
Safety light curtain  QT series accessories for QA-01 swivel fastening brackets
Safety light curtain  QT series accessories for QA-01 swivel fastening brackets
Safety light curtain  QT series accessories for QA-01 swivel fastening brackets
Model

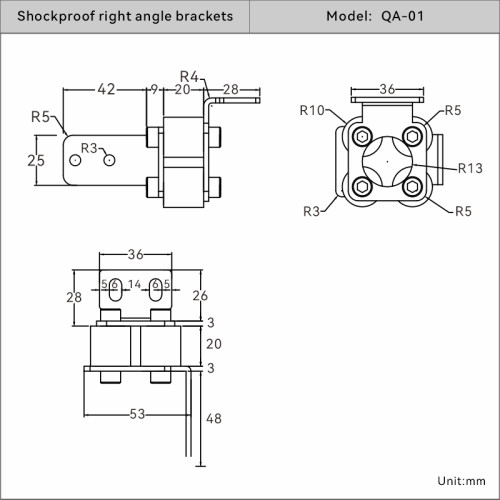

QA-01 swivel fastening brackets for QT series

Review

Description

Product List Configuration
Product number
QA-01
Short right angle bracket
2 PCS
Long right angle bracket
2 PCS
Hexagon socket screw M6 * 16
8 PCS
Nut M6
8 PCS
Convex nut
4 PCS
Hexagon socket screw M5 * 10
4 PCS
Leaf spring M5
4 PCS
Package size(mm)
100 * 100
Gross weight (g)
280
Basic information of installation accessories
Product number
QA-01
Material
Short right angle bracket
304 stainless steel
Long right angle bracket
304 stainless steel
Hexagon socket screw M6 * 16
304 stainless steel
Nut M6
Iron nickel plating
Convex nut
Iron nickel plating
Hexagon socket screw M5 * 10
Iron blackening
Leaf spring
Iron blackening
QA-01 swivel fastening brackets-3D.STEP
