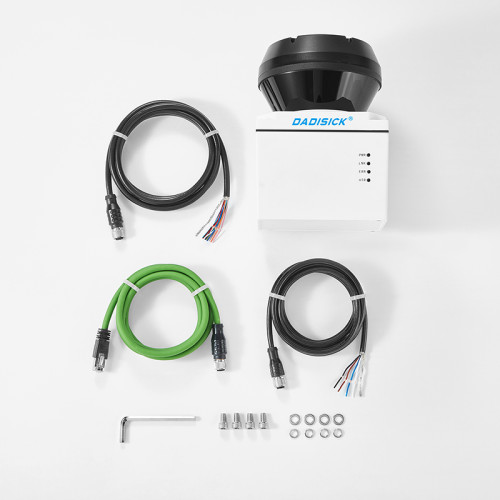

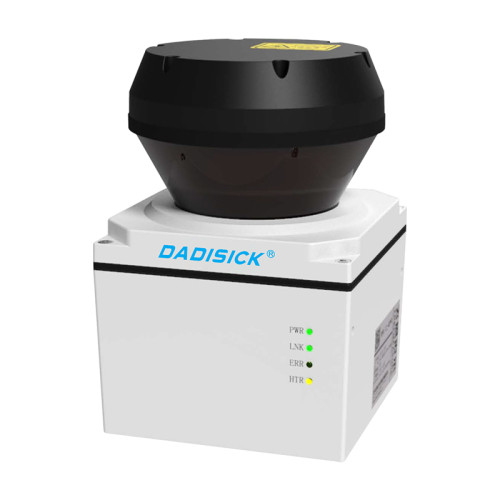

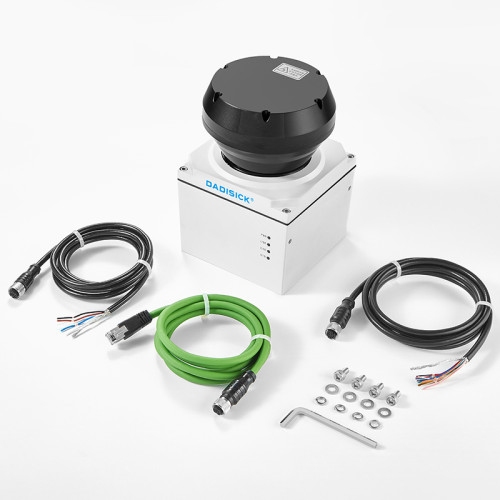

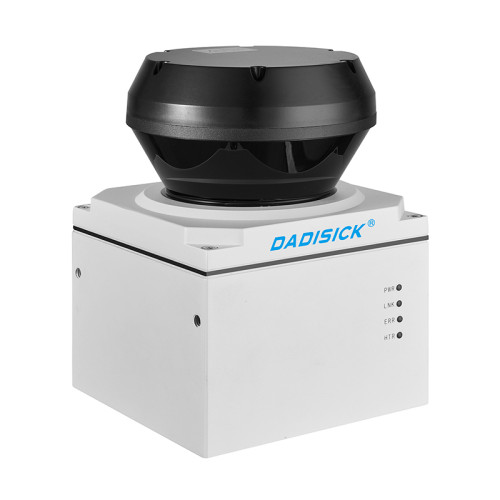

100 m Measurement Type Laser Scanning LiDAR｜LiDAR Scanner｜DADISICK
- Model
- DK-LD-100L / DK-LD-101L
Item specifics
- Sensing range：
- 0.07m – 100m
- Scanning frequency：
- 25 Hz
- Scanning angle range：
- 270°
- Angular resolution
- 0.5° / 0.25°
- Light source：
- Infrared laser (905nm)
- Laser safety level：
- Class I (GB 7247.1-2012, eye-safe)
Review
Description
|
Laser Scanning Radar Basic Information
|
||
|
Product number
|
Measurement type laser scanning radar |
|
|
Model
|
DK-LD-100L / DK-LD-101L |
|
Output | I/O output & Ethernet output | |
Features | DK-LD-100L | DK-LD-101L |
|
Light source
|
Infrared laser (905 nm) |
|
Laser safety level | Class I (GB 7247.1-2012, eye-safe) | |
Laser spot exit diameter | 12mm | |
Laser spot divergence angle | 6mrad | |
|
Scanning angle range
|
270° |
|
|
Scanning frequency
|
25 Hz |
|
|
Scanning Angular Resolution
|
0.5° | 0.25° |
Sensing range | 0.07m – 100m | |
10% reflectivity range | 50m | |
Outdoor performance | Resistant to dirt and sunlight | |
Rain, fog, and dust penetration | Supported | |
Technical Performance | ||
Measurement error (Typical) ● Systematic Error ● Statistical Error (1σ) | 1cm(1m~20m) / 2cm(20m~50m) | |
Built-in application | ● Area Monitoring
● Monitoring Modes: Point Count Monitoring / Target Width Monitoring / Contour Monitoring
● Monitoring Signal Types: Attention / Warning / Alarm
● Number of Area Groups: 16 groups, supports self-learning background cropping
● Number of Concurrent Working Area Groups: 16 (max)
● Guides network cameras to perform video positioning and tracking of monitored targets. | |
Device Self-Test | ● Content: Dirty/Obstructed light-transmitting cover/High temperature/Low temperature/Dense fog
● Output method: Indicator light + TCP message | |
Device Interface | ||
Ethernet | Speed: 10/100 Mbps
Network Protocol: TCP / UDP
Functions: Device configuration / Measurement data output / Area monitoring signal output | |
I/O input | Quantity: 4
Type: Level Input
High Level Range: DC 10V – 30V
Low Level Range: DC 0V – 0.7V
Preset Functions:
Force Cancel/Force Enable Area Monitoring Signal, Valid Level: High Level
Power Saving and Life Extension Control, Valid Level: High Level | |
I/O output | Quantity: 4 units
Type: PNP/NPN switch output
Maximum switching voltage: DC30V
Power-on status: Off Preset function: Device ready/area monitoring signal output, valid status: conǁgurable | |
Indicator light | Quantity: 4
Definitions: PWR (Power Supply)
LNK (Ethernet)
ERR (Equipment Alarm: DiDžy/Obstructed/Dense Fog, High/Low Temperature)
HTR (Normal Measurement) | |
|
Mechanical/electronic paramete
|
||
|
Operating voltage
|
DC 10V – 30V |
|
|
Power consumption
|
6W (measurement), 16W@DC12V / 32W@DC24V (heating) |
|
|
Degree of protection (IP)
|
||
Insulation resistance | ||
Electric strength | ||
Dimension (L ╳ W ╳ H) | ||
Interface cable lengt | ||
Weight | ||
