Which Sensor Is Used For Double Sheet Monitoring

Double sheet monitoring — detecting whether one sheet or multiple overlapping sheets are being fed — is a critical quality and safety check in printing, converting, packaging, and many roll-to-sheet manufacturing lines. Choosing the right sensor affects production uptime, waste, and tool protection. This article explains the common sensor technologies used for double sheet detection, how they work, which materials each is best for, and practical selection & installation tips.

Common sensor types for double sheet monitoring

Ultrasonic double-sheet sensors

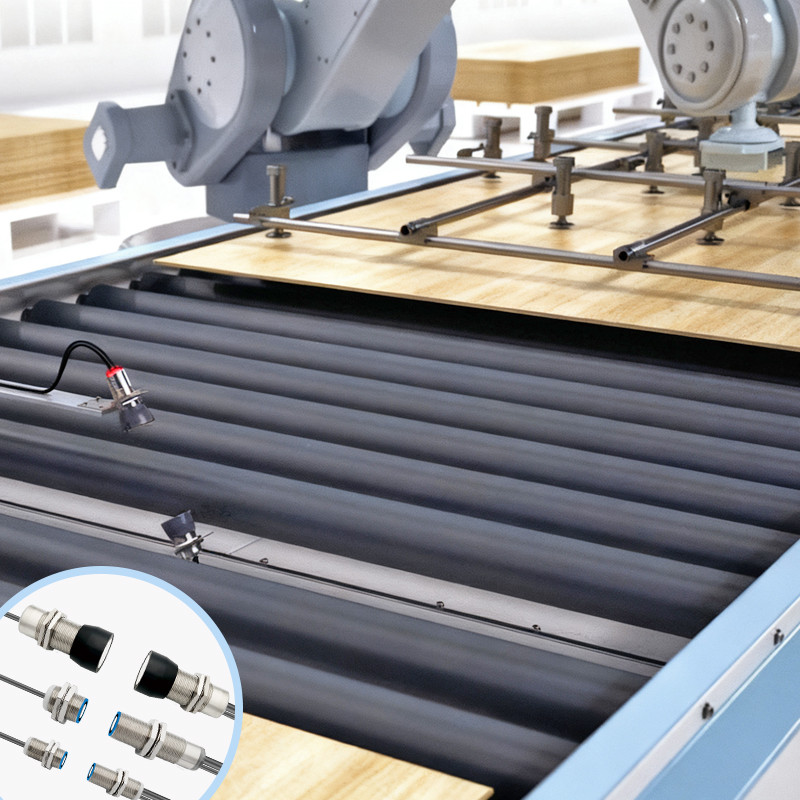

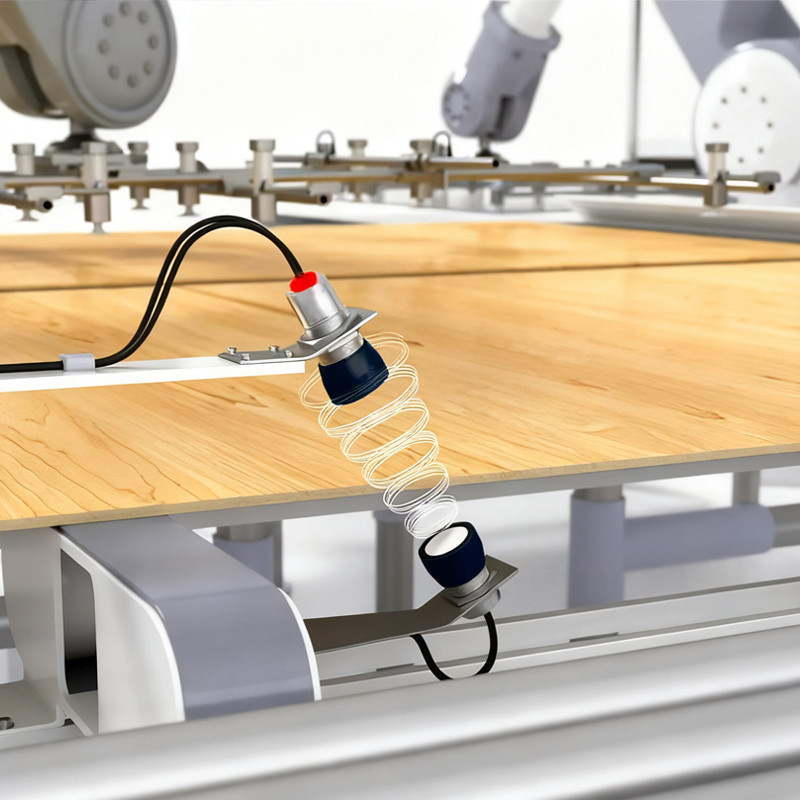

Ultrasonic sensors are one of the most widely used solutions for double sheet detection. They use a transmitter and receiver: the transmitter emits ultrasonic pulses and the receiver measures the received amplitude. When a single sheet passes, the ultrasonic signal is weakened to a certain level; when two overlapping sheets pass, the signal is reduced further — allowing the sensor to discriminate single vs. double layers. Ultrasonic sensors are largely insensitive to surface color or print, which makes them ideal for paper, plastic films and many non-metallic materials.

Capacitive / Dielectric sensors

Capacitive sensors detect changes in dielectric properties and can register very small thickness or layering changes of non-conductive materials (thin films, foils, coated substrates). They can be effective where ultrasonic sensors struggle (for example, very thin transparent films), but require careful tuning and may be influenced by humidity or material composition.

Inductive / Magnetic sensors

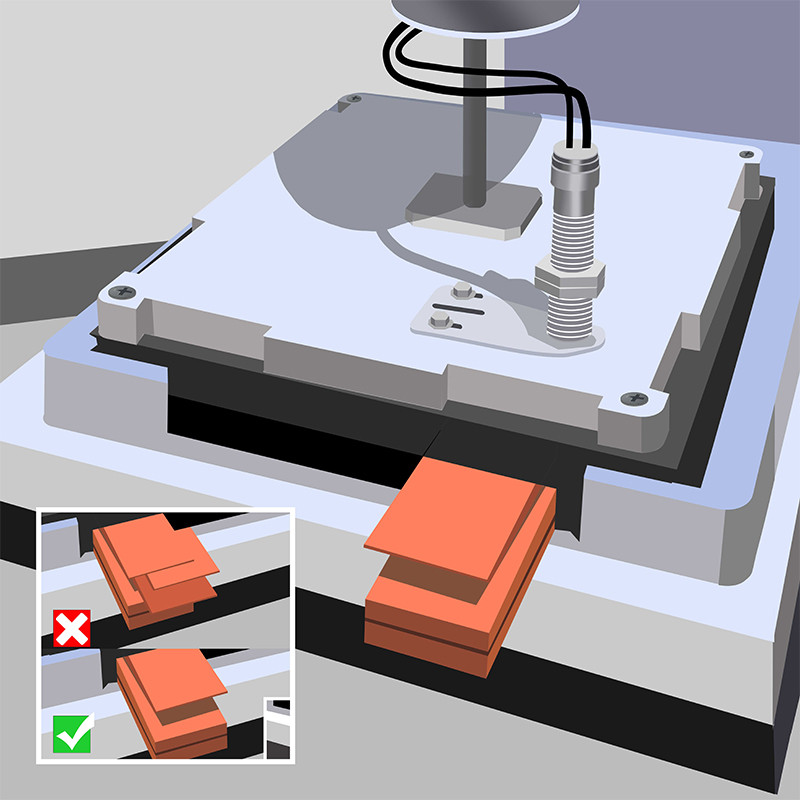

For metal sheets, inductive or magnetic-based double-sheet detectors are the natural choice. These sensors measure changes in electromagnetic coupling or use pulse-release methods to determine whether one or more metal layers are present. They are robust in harsh industrial environments and highly reliable for conductive materials.

Optical / Laser displacement and vision-based methods

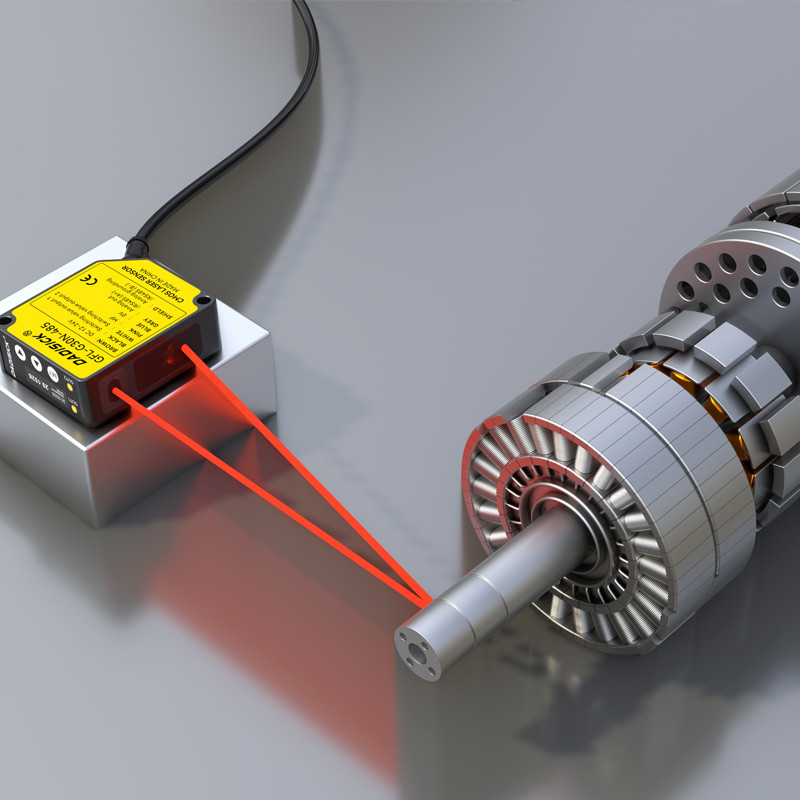

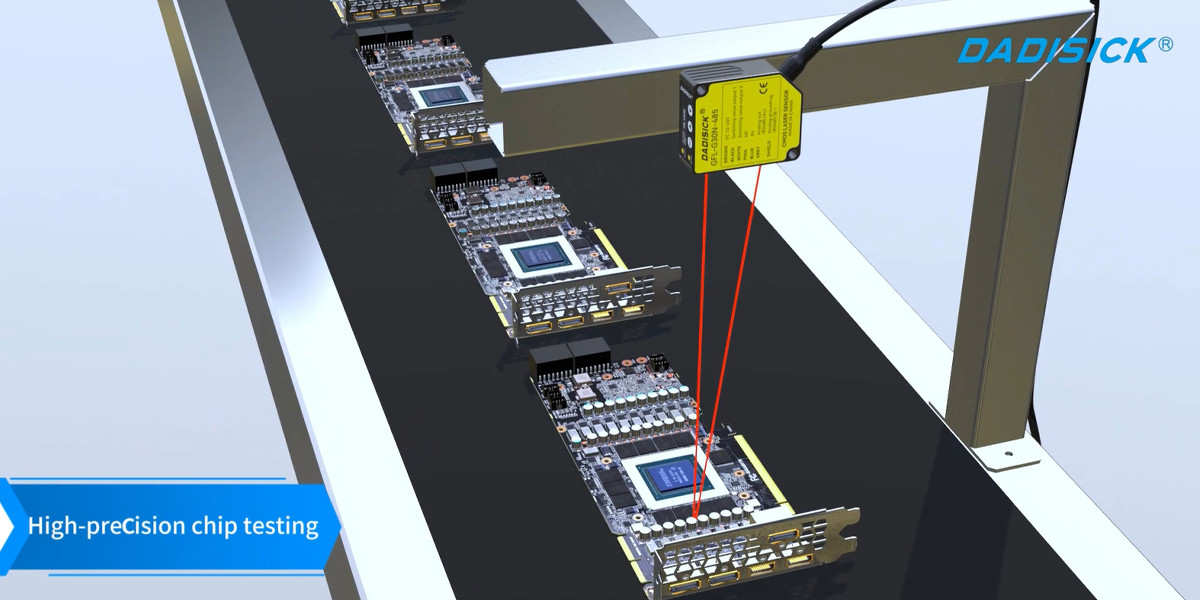

Some high-precision applications use optical displacement (laser triangulation/time-of-flight) or machine-vision solutions to infer thickness or the presence of overlapping sheets — particularly for stiff or shaped metal blanks where line-of-sight measurement is possible. These are more specialized and often used where ultrasonics or capacitive methods cannot meet accuracy or mechanical constraints.

How ultrasonic double sheet sensors work

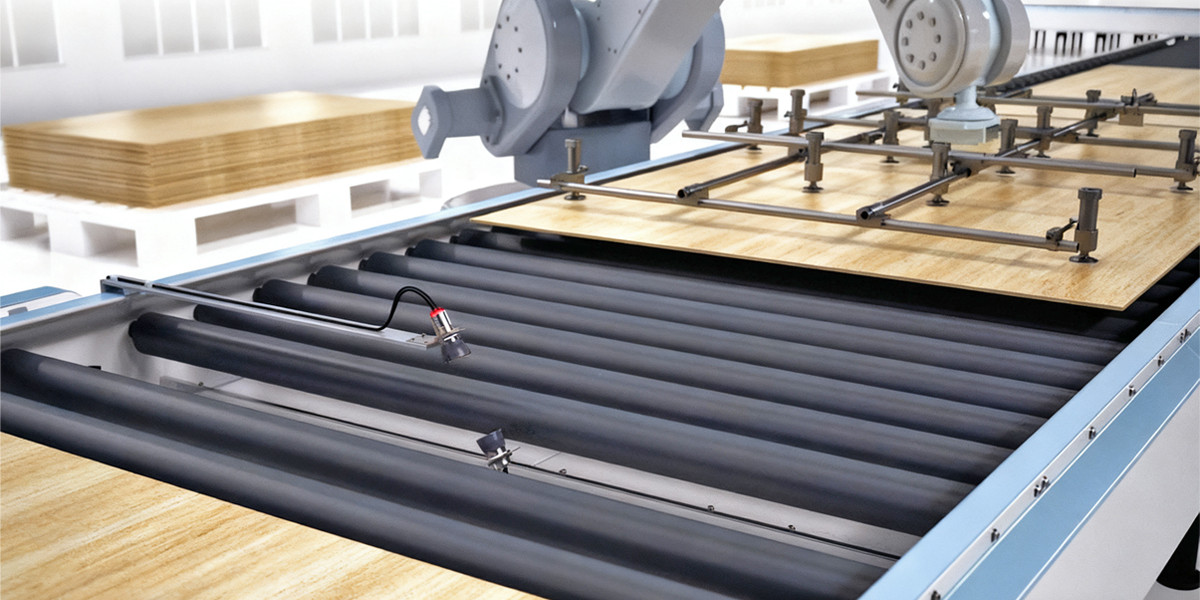

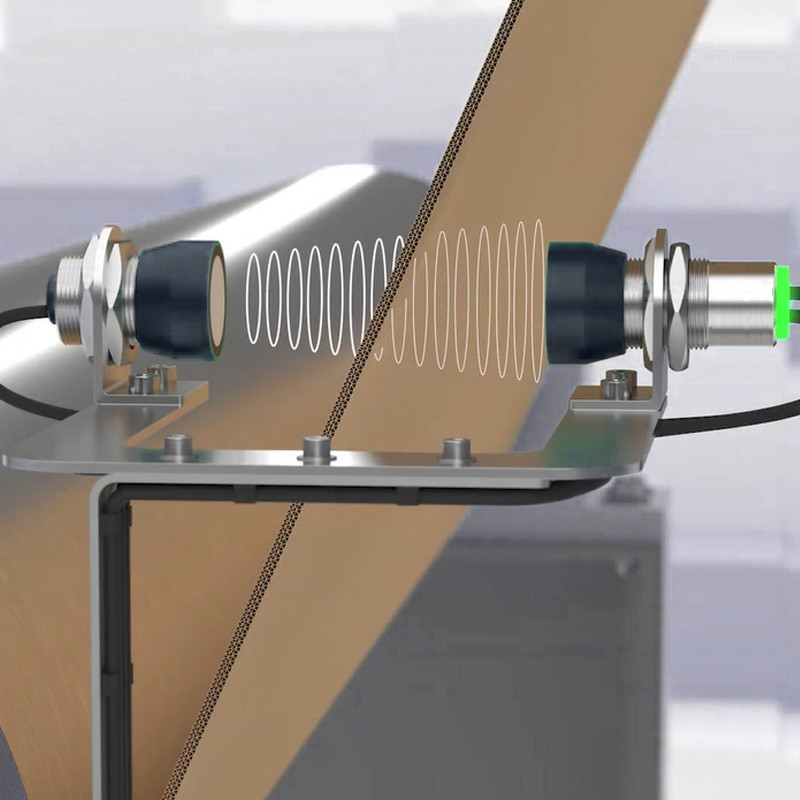

● Transmitter & receiver pair: One side emits a short ultrasonic pulse; the opposite side receives the transmitted energy.

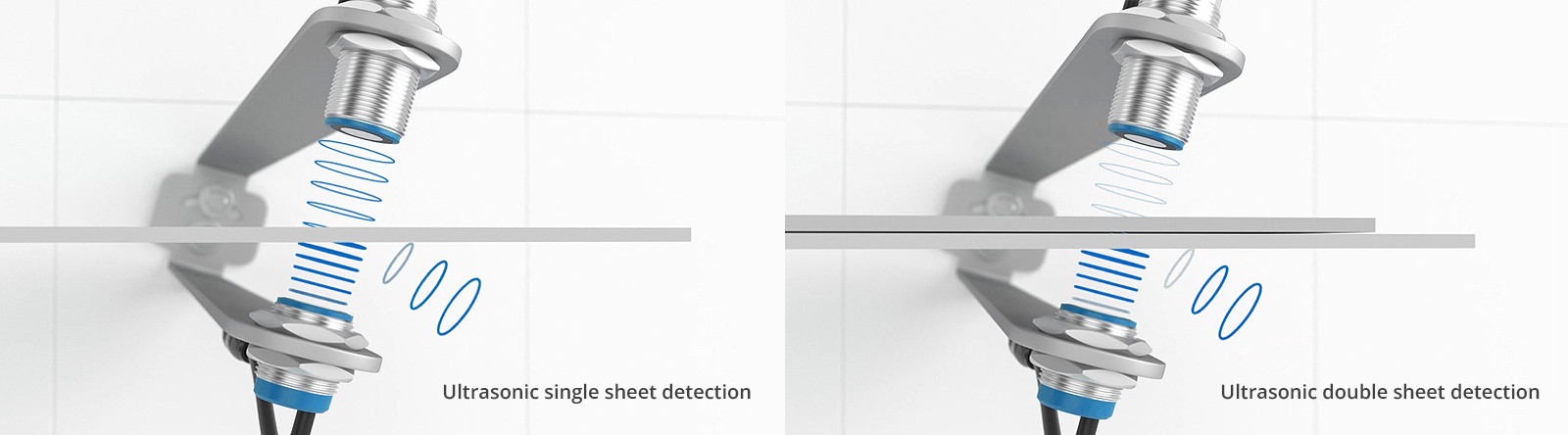

● Amplitude-based detection: A single sheet attenuates the pulse by a known amount; two sheets attenuate it more. The sensor compares measured amplitude against thresholds (single / double / no-sheet) to decide.

● Advantages: Non-contact, unaffected by color/print, reliable across many non-metallic substrates, suitable for continuous web or sheet feed.

Material-to-technology mapping

Paper / Cardstock / Printed sheets → Ultrasonic (general), Capacitive (thin coatings)

Plastic films / Polyethylene / BOPP / Laminates → Ultrasonic preferred; capacitive for very thin transparent films.

Metal sheets / foils → Inductive / magnetic sensors.

Stiff shaped blanks / metal press blanks → Laser-displacement or specialized optical methods where feasible.

Selection checklist — questions to answer before choosing a sensor

1. What is the material (paper/plastic/metal)? — Primary factor (ultrasonic vs inductive vs capacitive).

2. How thin are the sheets / how small is the thickness difference between single & double? — Very thin differences may need high-frequency ultrasonic or capacitive sensors.

3. Is the material printed, colored, or transparent? — If yes and optical is unreliable, ultrasonic is a strong choice.

4. Is the process high-speed or continuous web feeding? — Ensure sensor response time and repeatability match line speed.

5. Installation constraints (space, mounting one-sided vs two-sided)? — Some detectors require through-beam pairs; some product lines offer single-sided measurement or specialized mounting.

Practical installation & tuning tips

● Mounting alignment: Ensure transmitter and receiver face each other per manufacturer tolerances; misalignment reduces sensitivity.

● Teach/calibrate on production sample: Calibrate thresholds using actual production stock (single sheet, double sheet, and empty). Many commercial units provide remote/automatic calibration.

● Noise & vibration: Use damped mounts or shielding if the press/feeder environment vibrates heavily — vibration can affect amplitude readings.

● Environmental factors: Temperature, humidity, and dust can affect capacitive and, to lesser degree, ultrasonic performance. Account for environment in sensor choice and enclosure rating.

Quick comparison

Sensor type	Pros	Cons
Ultrasonic	non-contact, color-insensitive, good for many films/papers.	limited for very thin transparent layers in some cases.
Capacitive	very sensitive to thin dielectric changes.	influenced by humidity/material composition; needs tuning.
Inductive / Magnetic	best for metal.	not usable for non-conductive substrates.
Optical / Laser / Vision	high precision for certain shapes/metal blanks.	affected by surface reflectivity/print; may need complex setup.

FAQs

Q: Are ultrasonic double-sheet sensors affected by print or color?

A: No — that’s one of their major advantages; amplitude-based detection depends on material layering, not color.

Q: Can one sensor type handle all materials?

A: No — material type (conductive vs non-conductive), thickness, transparency and process speed determine the best choice. In practice, manufacturers offer different models tuned for specific ranges.

Recommendation

For most paper, plastic film and general non-metallic sheet feeding applications, ultrasonic double sheet sensors are the recommended first choice because of their non-contact nature and insensitivity to color/printing. For metal sheets, choose inductive/magnetic sensors. For special high-precision or shaped-blank cases, consider laser displacement or vision-based systems. Always validate selection with real production samples and consult the sensor vendor for tuning, demo units, or trial testing.
